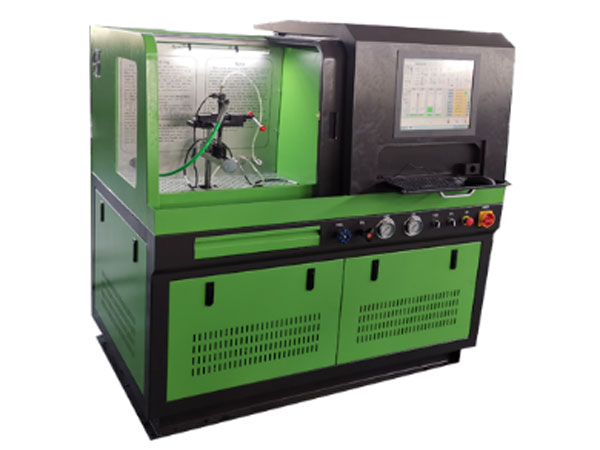

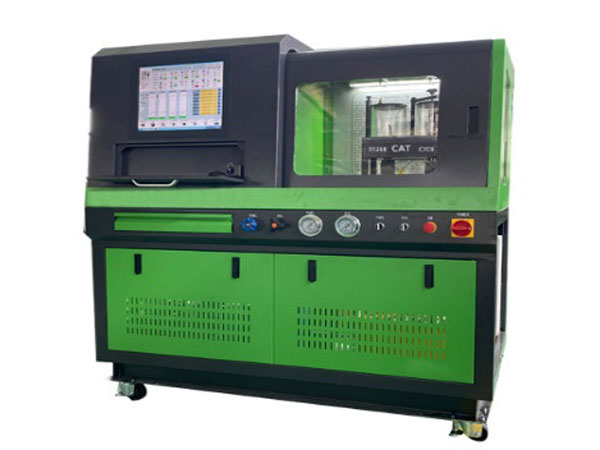

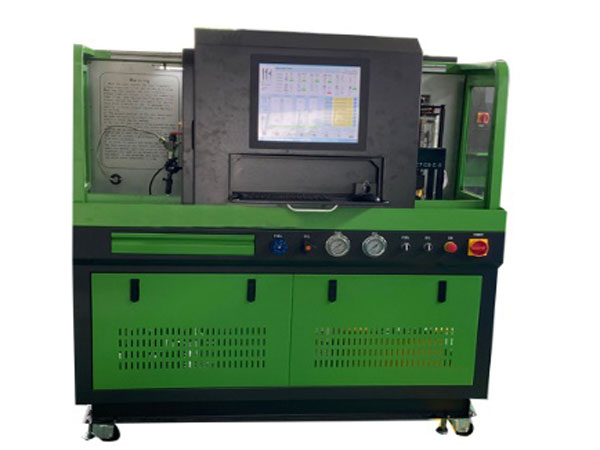

HCR7285喷油器试验台

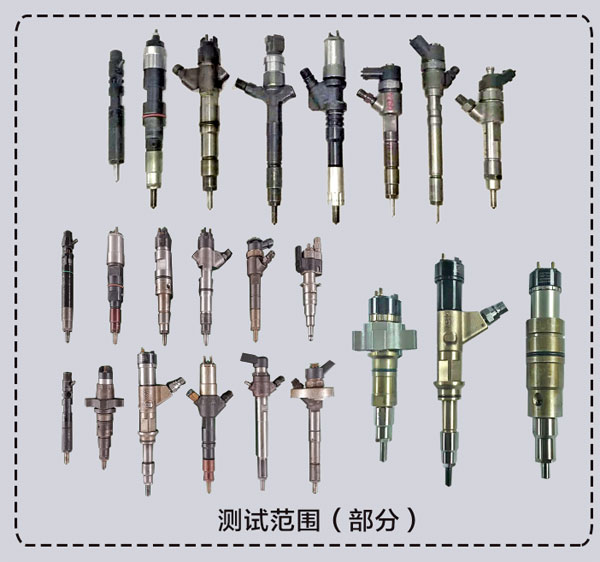

检测类型

一、 检测高压共轨喷油器

二、 检测压电晶体喷油器

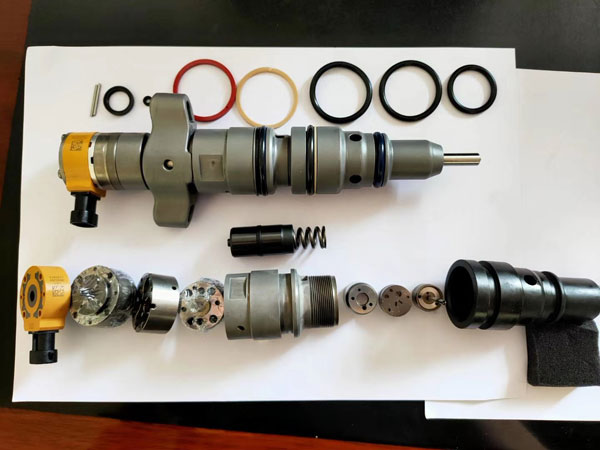

三、 检测HEUI喷油器

测试项目

一、 气密性检测

1】 动态下机油回油量(采用流量传感器测量)

2】 静态下的柴油密封性能检测

3】 静态下的机油密封性能检测

二、 喷油量检测

1】 检测负荷喷油量限值

2】 检测中速喷油量

3】 检测预喷喷油量

4】 检测怠速喷油量

5】 检测启动喷油量

6】 各种工况下机油回油量检测

Detection type

1. Detection of high-pressure common rail injectors

Second, check the piezoelectric crystal injector

3. Detection of HEUI injector

Test items

1. Air tightness test

1] The amount of oil returned under dynamic conditions (accurately measured with a flow sensor)

2] Diesel seal performance testing under static conditions

3] Testing of oil seal performance under static conditions

Second, fuel injection detection

1] Detect the maximum load injection quantity

2] Detection of medium-speed fuel injection

3] Check the amount of pre-injection

4] Detection of idle fuel injection

5] Check the start injection quantity

6] Oil return quantity detection under various working conditions

三、 性能特点

 Performance characteristics

1、 喷油器响应时间测试

1、 Injector BIP test

2、博世IQA码自生成、能自定义修改喷油器各工况的喷油量

2、The Bosch IQA code is self-generated and can customize the fuel injection amount of each working condition of the injector

3、自动生成喷油量补偿修正码

3、Automatically generate fuel injection compensation correction code

4、检测喷油器电磁阀电阻

4、Detecting the injector solenoid valve resistance

5、检测喷油器电磁阀电感

5、Detecting Inductor Solenoid Valve Inductance

6、机油压力手动自动均可调节

6、The oil pressure can be adjusted manually or automatically

7、检测DRV阀控制电流

7、Detection of DRV valve control current

8、工业电脑控制

8、Industrial computer control

9、AI在线升级数据

9、AI online upgrade data

10、轨压可达260Mpa

10、Maximum rail pressure 260Mpa

客户选配功能

油位不足自动报警

Automatic alarm for insufficient oil level

自生成DENSO喷油器QR码

Self-generating DENSO injector QR code

自生成BOSCH喷油器IMA编码

Self-generating BOSCH injector IMA code

自生成DELPHI喷油器C3i编码

Self-generating DELPHI injector C3i coding

自生成Siemens喷油器修正码

Self-generating Siemens injector correction code

技术参数
